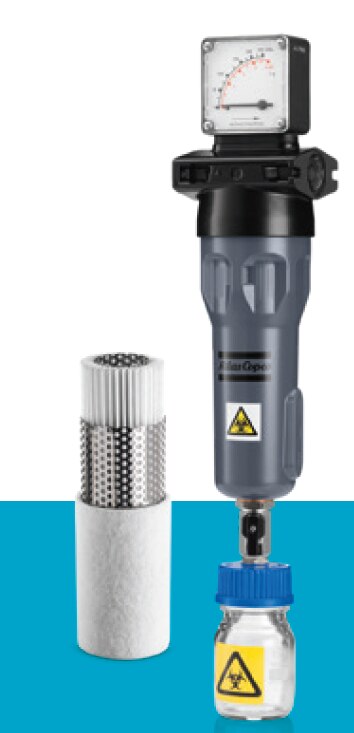

MV SERIES Medical vacuum filters for optimal protection of man and machine Medical vacuum filters are installed at the inlet of the vacuum pump to remove any liquid, solid or bacterial contamination which could damage the vacuum pump and biologically infect the downstream air. Our innovative medical vacuum filtration solutions comply with HTM medical standards. YOUR BENEFITS Maximum contaminant removal -Removal of dry and wet dust, particulates, oil aerosol and water droplets. -High-efficiency glass fiber and fleece media. Significant energy savings & limited system operation cost -Optimal design and filter media allow for low pressure losses. High reliability -High performance stainless steel cores, double O-rings, epoxy sealed caps and anti-corrosive coated filter housing. Easy maintenance -External ribs on the threaded housing and push-on elements. Monitoring of energy use -Differential pressure indication show the pressure loss. Applications • Medical • Dental • Veterinary

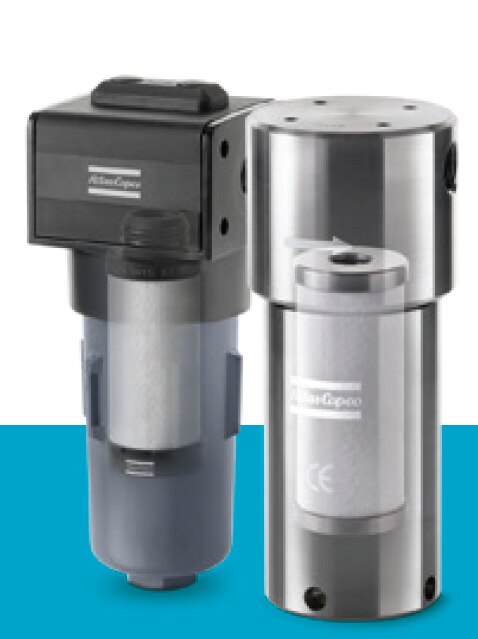

H SERIES Guaranteed air purity up to 350 bar High pressure filters efficiently reduce oil aerosol, dust and wet dust, particulates, water droplets and oil vapor in your compressed air stream to protect your investment, equipment and processes. Our innovative high pressure filtration solutions are engineered to cost effectively provide the best air purity and meet today’s increasing quality demands up to working pressures of 350 bar. All high pressure filter housings are hydraulically tested to ensure safe and reliable operation at all times. A pressure test certificate accompanies each filter. YOUR BENEFITS Maximum contaminant removal (dry & wet dust, particulates, oil aerosol and water droplets) -High-efficient glass fiber and fleece media. Significant energy savings & limited system operation cost -Optimal design and filter media allow for low pressure losses. High reliability -High-performance stainless steel cores, double O-rings, epoxy sealed caps and anti-corrosive coated filter housing. Applications • Chemical • Food & beverage • Manufacturing • Military • Oil & gas

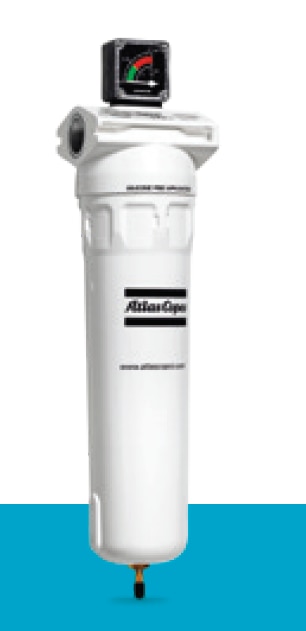

SFA SERIES Silicone-free removal of oil aerosol, dust and oil vapor Superb air purity is a prerequisite to safeguard your instruments and end product. Our silicone-free SFA filters efficiently prevent dry and wet dust, particulates, oil aerosol and water drops from entering your compressed air system. The SFA series is manufactured and treated according to the high standards of silicone-free equipment, and certified by the Fraunhofer Institute as guaranteed silicone-free. YOUR BENEFITS Maximum contaminant removal -Removal of dry and wet dust, particulates, oil aerosol and water droplets. High-efficiency glass fiber and fleece media. Significant energy savings & limited system operating costs -Optimal design and filter media allow for low pressure drops. High reliability -High-performance stainless steel cores, double O-rings, epoxy sealed caps and anti-corrosive coated filter housing. Easy maintenance -External ribs on the threaded housing and push-on elements. Monitoring of energy use -Differential pressure indication (indicator for sizes 9-32 l/s, gauge for sizes 44-520 l/s) (optional). Applications • Painting • Automotive Options • Filter connection kit (9-520 l/s). • Wall-mounting kit (9-520 l/s). • Quick coupling (DD & PD only). • EWD no-loss electronic drain (DD & PD only). • Voltage-free contact mounted in the differential gauge (not for QD). Certification Paint compatibility certificate (Fraunhofer Institute)

QD(+) SERIES High performance oil vapor filters QD(+) filters efficiently reduce hydrocarbons, odors and oil vapor in your compressed air stream to protect your investment, equipment and processes. The activated carbon layers will, by the use of adsorption, reduce the residual oil content to less than 0.003 mg/m³. The pressure drop is low and stays minimal during the lifetime of the filter. YOUR BENEFITS Maximum oil vapor removal -Highly efficient activated carbon layers. Significant energy savings & limited system operating costs -Low pressure losses. High reliability -High-performance stainless steel cores, double O-rings, epoxy sealed caps, and anti-corrosive coated filter housing. Easy maintenance -External ribs on the threaded housing, or a rotating bottom cover for the welded housings, and push-on elements. Options • Filter connection kit for easy mounting in series (10+ - 550+ l/s and 12-690 l/s). • Wall mounting kit simplifies installation (10+ - 550+ l/s and 12-690 l/s).

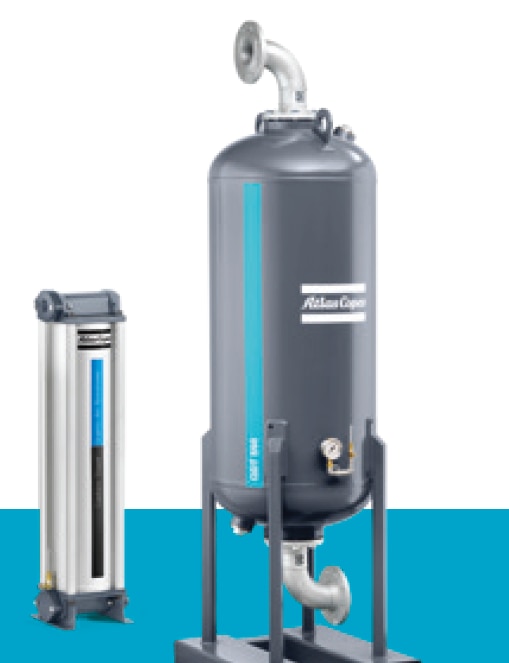

QDT SERIES Activated carbon towers for optimal oil vapor filtration The high efficiency activated carbon tower is capable of removing hydrocarbons, odors and oil vapor from compressed air. The activated carbon will, by the use of adsorption, reduce the residual oil content to lower than 0.003 mg/m³. The pressure drop is low and stays minimal during the filter’s lifetime. YOUR BENEFITS Maximum oil vapor removal -Superb activated carbon material. Low pressure drop -Optimal internal flow path. High reliability -Robust design and optimal filter material. Options • Oil indicator ensures pure air. • Wall mounting kit for easy installation (20 – 185 l/s).

DDp(+)/PDp(+) SERIES Optimal dry dust filtration DDp(+) and PDp(+) filters efficiently prevent dust, particulates and micro-organisms arising from corrosion, dirt and adsorption material from entering your compressed air stream. These innovative filtration solutions are engineered to cost-effectively provide the best air purity and meet today’s increasing quality demands in Air Compresor piping. YOUR BENEFITS Maximum dirt, solid particles, micro-organisms and rust particles removal -High-efficient glass fiber and foam media. Significant energy savings & limited system operating costs -Optimal design and filter media allow for low pressure losses. High reliability -High-performance stainless steel cores, double O-rings, epoxy sealed caps, and anti-corrosive coated filter housing. Easy maintenance -External ribs on the threaded housing, or a rotating bottom cover for the welded housings, and push-on elements. Monitoring of energy use -Differential pressure indication (indicator for sizes 10-35 l/s, gauge for sizes 45-8000 l/s) (optional for standard range). Airprax Pneumatics is an Authorised dealer for Atlas Copco Air Compressors in peenya, Bangalore, Karnataka

UD+ SERIES Filters Two-in-one oil coalescing filters with supreme energy savings. UD+ filters efficiently reduce oil aerosol, wet dust and water drops in your compressed air stream to protect your investment, equipment and processes. The UD+ combines two filtration steps (pre filter DD+ and post filter PD+) into one, a unique technology to meet the high-quality requirements of diverse applications and provide ultimate energy savings. YOUR BENEFITS 40% energy savings -A 40% lower pressure drop than the conventional filter combination results in 40% higher energy efficiency. Pure air -Air purity is equal to that obtained using two filters in line, thanks to the thick filter package of UD+ filters. Save space -The two-in-one filtration concept reduces installation space and complexity, making UD+ filters particularly suitable for applications where space is at a premium in Air compressor line. Save money -Install UD+ filters to enjoy significant cost savings compared to conventional filters i air compressor line. Airprax Pneumatics LLP, Authorised dealer for Atlas Copco Air Compressor, located in Peenya, Bangalore, Karnataka
