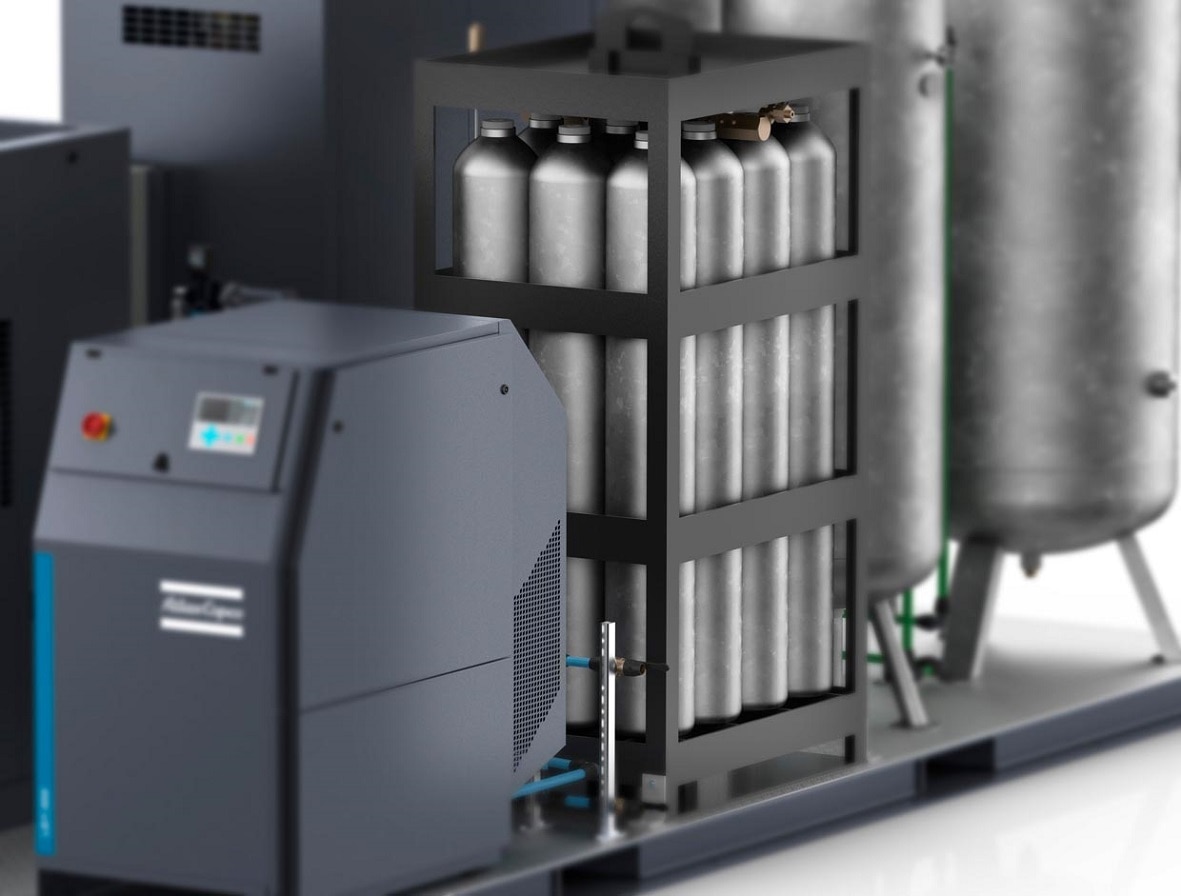

High Pressure Nitrogen Skid Plate 1. GA VSD technology compressor The latest Variable Speed Drive compressors match their motor speed and power consumption to users’ nitrogen demand to deliver double-digit energy savings. This significantly reduces their operational costs and environmental footprint. 2. Complete Nitrogen Generator This innovative machine has a digital zirconia gas purity sensor, flow meter, pressure regulator included as standard. The unit comes with our in-house developed Variable Cycle Saver (VCS) which eliminates energy waste during lower demand and in colder temperatures. 3. Nitrogen booster The high-efficiency booster comes in a 40-bar version for on-demand nitrogen generation and in a 300-bar one for cylinder storage. It safeguards the nitrogen purity for the lowest energy cost. 4. Low pressure storage tank The skid package is designed to have optimized tank capacity to reduce the booster’s starts & stops and to run the package in an efficient way. 5. Nitrogen storage Depending on the application’s working pressure a 40-bar storage tank for on-demand use or a 300-bar cylinder rack is available. 6. Local distribution panel The Local Distribution Panel (LDP) on the skid package makes the power supply very easy. The customer has one electrical cable input connection to power the total skid package. 7. All-in-one nitrogen generation solution The high pressure nitrogen skid package can serve as a backup supply or allows you to downsize in case of fluctuating demand. It can even cover for peak requirement thanks to the high pressure storage instead of a higher capacity generator which results in significant savings. 8. High ambient environment An offskid dryer can easily be installed on the standard foreseen tapping points in case the ambient temperature is higher than 35°C. A preselection has be done but can be tailored to your needs. 9. Options for more flexibility Multiple options are available to customize your package further: additional 40-bar storage tanks or 300-bar cylinder racks, room oxygen alarm, outlet pressure regulator, an oil-water separator.

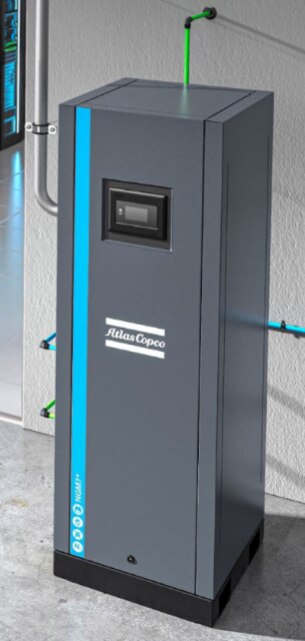

NGMs+ 7 - 70 The nitrogen generator makes use of selective membrane permeation technology to produce nitrogen by passing compressed air through hollow polymer fibers. The hollow fibers have the property to allow for the selective permeation of oxygen molecules into the atmosphere when pressurized, this effectively splits up the compressed air into two streams of gas: one low pressure oxygen stream (exhaust) and one high pressure nitrogen stream (product gas). The production process is continuous. The generator comes equipped with internal filters to protect the membranes from various impurities, such as: small amounts of condensate, oil aerosols, oil vapour and solid particles. When inlet conditions are considered damaging for the membranes, the inlet valves have the ability to close automatically to protect the membranes. To protect the membranes from excessive pressure increases, the generator is equipped with a secondary inlet circuit that will gradually build up pressure in the membranes to prevent damaging them, once a safe pressure threshold has been reached, the main inlet circuit will take over. This entire process happens automatically whenever the membranes need to be (re)pressurized. Nitrogen generators Membrane technology NGM+ 7-70 Reliable on-site nitrogen generation with best-in-class performance Membrane technology has traditionally offered high-quality, reliable on-site nitrogen generation. Atlas Copco’s new NGM+ now raises the bar with exceptionally low air and energy consumption, giving you the lowest cost of ownership on the market today. Maximizing the robustness and simplicity of membrane technology, the NGM+ is a compact, quiet and dependable presence on your production floor.

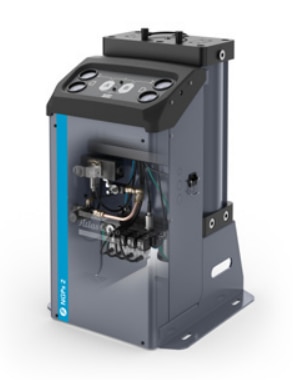

NGPs 2 - 9 Nitrogen Generators The versatile low-flow nitrogen solution Even when your production uses as little as 1 nitrogen cylinder per week, you can benefit from producing your own N2 with the Atlas Copco NGPs 2-9. Our smallest PSA generator ensures a cost-efficient, flexible and reliable nitrogen supply with a purity of up to 99.999%. Compact and easy-to-use, the NGPs 2-9 meets the requirements of the most straightforward jobs as well as very demanding applications with its advanced control and purity monitoring features. Cost savings • Low cost per unit of N2 compared to gas cylinders. • Best-in-class air/energy consumption. • PSA design adapted for small nitrogen needs. Easy to install & use • Easy to hook up to your existing compressed air network. • Compact footprint takes up little room on your shop floor. • Advanced controller with remote monitoring. Reliability • Stable supply of N2 at a guaranteed purity. • Designed for continuous duty. • Self-protective design and future-proof operation. For straightforward jobs When you just need your N2 and get going, the NGPs has got you covered: • Proven technology: Extruded aluminum adsorber design ensures a compact footprint, reliable operation and a long lifetime. • Easy installation and operation: Just connect the NGPs to your compressed air supply and start producing your own N2. • No wasted air: Avoid the standby losses that nitrogen generators can experience. Through smart valve controls, the NGPs’ Economizer function ensures no air/energy is wasted. For demanding applications When your N2 application requires advanced quality, purity and performance control, choose from a range of optional features: • Advanced controller: - 4.3” color touch screen with remote monitoring - Live machine status and key parameters (N2 purity, pressure, flow, PDP, ...) - Alarms and service information - User settings, such as Economizer set points, alarms, ... • Nitrogen check: Measures every unit of N2 before allowing it to reach your application for an absolute purity guarantee. • Nitrogen PDP sensor: Inspects the quality (moisture level) of the N2 to ensure it matches your specifications. • Feed air check: Continuously monitors the feed air and, if preferred, blocks it from entering the generator when its quality isbelow standard. • Nitrogen flow sensor: Provides an indicative measurement of the live nitrogen capacity at the generator’s outlet. Options - Advanced controller - Nitrogen check - Feed air check - Nitrogen PDP sensor - Nitrogen flow sensor - Mass flow control valve - Room oxygen alarm (wall mount)

Atlas Copco membrane nitrogen generation makes use of selective membrane permeation technology to produce nitrogen by passing compressed air through hollow polymer fibers. The hollow fibers have the property to allow for the selective permeation of oxygen molecules into the atmosphere when pressurized, this effectively splits up the compressed air into two streams of gas: one low pressure oxygen stream (exhaust) and one high pressure nitrogen stream (product gas). The production process is continuous. The generator comes equipped with internal filters to protect the membranes from various impurities, such as: small amounts of condensate, oil aerosols, oil vapor and solid particles. When inlet conditions are considered damaging for the membranes, the inlet valves have the ability to close automatically to protect the membranes. Atlas Copco’s new NGM+ now raises the bar with exceptionally low air and energy consumption. Maximizing the robustness and simplicity of membrane technology, the NGM+ is a compact, quiet and dependable presence on your production floor. Cost savings: Minimal energy consumption per unit of N2,20% less feed air required than a traditional generator. Lowest total cost of ownership in its class. No wasteful feed air heater required. Best-in-class membrane technology. Absolute reliability: Continuous supply of nitrogen with a stable purity. Advanced control and monitoring features optimize the uncluttered build and stable performance of membrane technology. Can be combined with a cylinder or bulk gas supply system. Ease of use: Easy purity adjustment on controller. Fast, straightforward start-up and commissioning. With offices in Bangalore and service areas throughout Karnataka and neighboring states, Airprax Pneumatics LLP is the state of Karnataka's authorized distributor for Atlas Copco air compressors and air dryers.

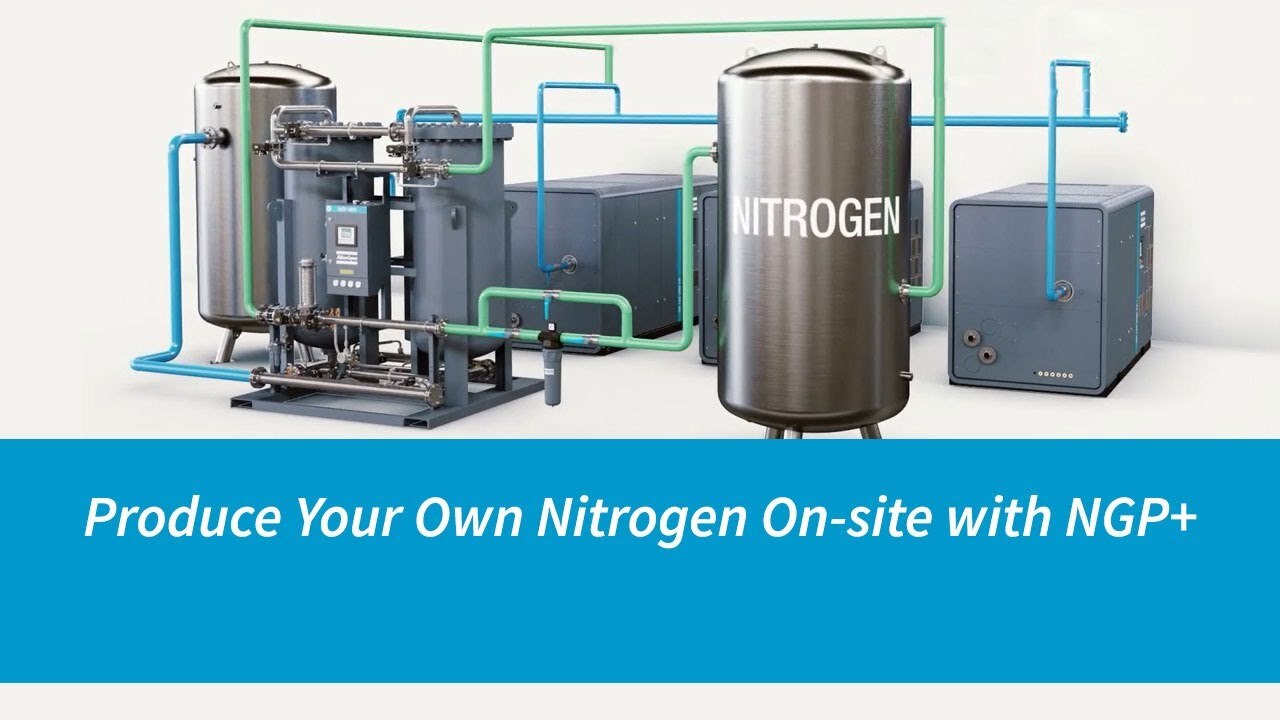

PSA Nitrogen Generators : New generation membrane & PSA generators will change the market.Atlas Copco’s latest membrane and PSA generators extend the advantages of the current range. Total lifecycle cost consists of the initial investment cost of the on-site installation, the service cost, and the energy cost. The NGP/NGM range has the lowest investment cost. However, with increasing running time, you are better advised to switch to the NGP+/NGM+ range to reduce energy costs. With an air factor* of 1.8 (at 95%) to 5.5 (at 99.999%) and a special cycle time modulation algorithm, the running cost of the new NGP+ can be reduced by50%, compared to other N2 generators. * High purity nitrogen supply up to 99.999% : Atlas Copco’s NGP/NGP+ nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules in compressed air. Oxygen, CO2, water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP+ Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others. * High quality compressed air : On-site nitrogen and oxygen generation requires the most reliable and efficient compressed air solution. Drawing on our vast experience, Atlas Copco has been leading the industry in compressed air technology for decades. *Advanced monitoring,control & connectivity : Do you operate a smart factory or Industry 4.0production environment? Atlas Copco’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency. Connect SMARTLINK* : Data Monitoring Program • Remote monitoring system that helps you optimize your compressed air system and save energy and costs. • Provides a complete insight in your compressed air network. • Anticipates potential problems by warning you upfront. *PSA nitrogen (NGP) : 1) High flow capacity : The wide product range and gas flows exceeding 3,000 Nm³/h (NGP/NGP+) make these generators ideal for a variety of demanding applications. 2) Ready to use : • Only requires a supply of dry compressed air. • Plug-and-play. • No specialist installation or commissioning. • Fully automated and monitored including oxygen sensor as standard. • Service-friendly, 3) Exceptional reliability : • Robust design. • Continuous availability (24 hours a day, 7 days a week). • Potential risk of production breakdown due to gas running out is eliminated. 4) Desired purity : • NGP/NGP+: nitrogen concentrations from 95% to 99.999%. • OGP: oxygen concentrations from 90% to 95%. 5) Cost savings : • Low operating expenses. • No additional costs such as order processing, refills and delivery charges. • Limited maintenance costs. New generation NGP+ nitrogen generators : 1) Self-protective monitoring of the feed air quality : • Temperature. • Pressure. • Pressure dewpoint. • Automatic feed air blow-off in case of contamination. 2) Premium energy efficiency: Air factor (air-to-nitrogen ratio) from 1.8 (95%N2) to 5.5 (99.999% N2). 3) Automatic start-up : • Minimum pressure valve with bypass nozzle for fast start-up. • Eliminates risk of overflow and CMS damage. 4) Highest quality CMS : • High density due to packed bed technology. • Top/bottom equalization. • Protected by dedicated pressure sensor. 5) Self-regulation and stable purity : • Automatically regulates to the requested nitrogen pressure and purity. • Extremely easy to change purity. • Off-spec nitrogen flushing. 6) Control and monitoring : • Remote start-stop. • Modbus, Profibus and Ethernet. • SMARTLINK. 7) Back flow pressurization : • In the pressurization phase nitrogen is used instead of air. • No oxygen contamination of the CMS before adsorption phase starts. 8) The ultimate energy saver : • Stand-by mode in case no nitrogen is consumed. • Cycle time modulation algorithm = extended cycle time at low nitrogen demand reduced air consumption at low nitrogen demand. Models : NGP,NGP+ Purity : 95% To 99.999% Pressure Dew Point inlet Air : 3°C/37°F Pressure Dew Point inlet Nitrogen : -50°C/-58°F Wide range of applications: Food & beverage (storage & packaging). • Pharmaceutical applications. • Plastic injection molding. • Electronics. • Laser cutting. • Semiconductor manufacturing. • Chemical applications. • Metal heat treatment. • Cable & optical fiber industries. • Glass industries. • Fire prevention. • Aquaculture Airprax Pneumatics LLP are authorized distributor for Atlas Copco Make Air Compressors, Air dryers in state of Karnataka having office in Bangalore and servicing all across Karnataka and nearby states.

Membrane Nitrogen Generators NGM/NGM+/NGMs utilize proprietary membrane separation technology.The membrane separates compressed air into two streams: one is 95-99.9% pure nitrogen, and the other is oxygen enriched with carbon dioxide and other gases. 1) Instant supply of nitrogen between 95% and 99.9% : The generator separates air into component gases by passing inexpensive compressed air through semipermeable membranes consisting of bundles of individual hollow fibers. Each fiber has a perfectly circular cross-section and a uniform bore through its center. Because the fibers are so small, a large amount of fibers can be packed into a limited space, providing an extremely large membrane surface area that can produce a relatively high volume product stream. 2) Outstandingly dry nitrogen : Compressed air is introduced into the center of the fibers at one end of the module and contacts the membrane as it flows through the fiber bores. Oxygen, water vapor and other trace gases easily permeate the membrane fiber and are discharged through a permeate port while the nitrogen is contained within the membrane and flows through the outlet port. Since water vapor permeates through the membrane as well, the nitrogen gas stream is very dry, with dewpoints as low as -50°C (-58°F). Membrane nitrogen generators (NGM, NGM+, NGMs) : NGMs: efficiency in low flow nitrogen generation If you don’t need a generator with a high nitrogen flow and purity, the NGMs is your perfect solution. It meets your specific requirements with Atlas Copco quality, high efficiency, little maintenance and zero operational costs. Based on innovative membrane technology, Atlas Copco’s membrane nitrogen generators are flexible enough to adapt to your specific applications. And with low operating costs they offer an excellent return on investment. *Ready to use : • Requires only a supply of dry compressed air. • No specialist installation or commissioning. • Fitted with pre-filtration, pressure gauges and flow meter to ensure accurate system monitoring at all times. *Cost savings : • Low operating expenses. • No additional costs such as order processing, refills and delivery charges. • Limited maintenance costs. *Exceptional convenience • Continuous availability (24 hours a day, 7 days a week). • Risk of production breakdown due to gas running out is eliminated. *Desired purity • Nitrogen supply according to your need: from 5% to 0.1% oxygen content. • Very easy to set up the device for other purity levels. *All-in-one • Fully integrated package. • Filters and oxygen sensor as standard. * High flow capacity: Ideal for applications such as fire prevention, tire inflation, oil & gas, marine, packaging and many more. *Long lifetime • No aging. • No heater. • Lasting performance. Models : NGM,NGM+. Purity : 95% To 99.999% Pressure Dew Point inlet Air : 3°C/37°F Pressure Dew Point inlet Nitrogen : -50°C/-58°F Wide range of applications: Food & beverage (storage & packaging). • Pharmaceutical applications. • Plastic injection molding. • Electronics. • Laser cutting. • Semiconductor manufacturing. • Chemical applications. • Metal heat treatment. • Cable & optical fiber industries. • Glass industries. • Fire prevention. • Aquaculture Airprax Pneumatics LLP are authorized distributor for Atlas Copco Make Air Compressors, Air dryers in state of Karnataka having office in Bangalore and servicing all across Karnataka and nearby states.
