A blower that delivers the advertised airflow can still fail at the machine if pressure, temperature, filtration, or pipe losses were ignored. By matching the blower technology and operating point to each Tumkur production process, you can decide where oil-free air or vacuum is appropriate, specify the installation correctly, and avoid treating a low-pressure blower as a replacement for a compressor.
Key takeaways
- Match blower pressure and flow to the process duty.
- Use inlet filtration to protect the blower from Tumkur factory dust.
- Size the blower at its real operating point, not its maximum rating.
- Check piping, cooling, controls, and service access before installation.
How oil-free blower operation moves air without oil in the air path
Air enters through an inlet filter, which removes dust before the blower handles it. The motor then turns an impeller, lobe assembly, or other compression element. That rotating element draws air into the chamber, traps or accelerates it, and pushes it toward the discharge.
The casing and clearances guide the stream; no oil film is injected into the compression space.
That is the core of oil free blower operation. In a positive-displacement design, lobes or screws move a near-fixed volume with each revolution, while system resistance creates discharge pressure. In a dynamic design, an impeller adds velocity and the casing converts part of that velocity into pressure.
The required flow at the machine inlet—not motor horsepower alone—determines whether the blower will perform.
An oil-free designation means the compression chamber has no lubricating oil entering the air path. It does not promise contaminant-free air: inlet dust, ambient hydrocarbons, rust, seal wear, and condensate can still travel downstream.
A safe industrial oil free blower process includes:
- Inlet filtration before the blower
- Discharge-temperature control where heat could damage equipment
- A non-return valve to prevent reverse flow
- Pressure relief, especially on positive-displacement blowers
- A pulsation damper or receiver where fluctuating flow affects the process
Never let a positive-displacement blower run against a closed discharge unless its relief path is correctly sized.
Blower or compressor: match pressure, flow, and vacuum to the process
Start with the pressure or vacuum at the machine inlet, then find the airflow needed at that condition. That operating point—not motor kW and not free-air delivery alone—tells you whether a blower fits a Tumkur process.
1. Record the machine maker’s required pressure, flow, or vacuum at the point of use. Use negative pressure for vacuum lifting, not a blower’s nominal air volume.
2. Measure the demand during the hardest cycle. Include simultaneous grippers, air knives, clamps, blow-off nozzles, or conveying lines rather than adding their ratings casually.
3. Add losses from inlet filters, discharge piping, bends, hoses, valves, dirty filters, and leaks. Excessive hose length or an open vacuum gripper can consume capacity before air reaches the machine.
4. Read the blower performance curve at the required pressure or vacuum. Confirm delivered flow at that point, discharge temperature, and allowable operating range.
5. Check whether the process needs a compressor instead. A blower suits high-flow, lower-pressure duties within its curve; pneumatic tools and laser cutting assist gas can require pressure, purity, or flow beyond it.
| Process | Check at the machine | Wrong match causes |
|---|---|---|
| Pneumatic conveying | Airflow and conveying pressure | Material settles or plugs the line |
| Vacuum lifting | Negative pressure under load | The lifter drops or holds weakly |
| Air knives and blow-off | Flow across the full outlet width | Water, chips, or debris remain |
| Clamping and pick-and-place | Pressure during simultaneous motion | Actuators move slowly or stall |
These oil-free blower applications need stable delivery, not merely a large motor. Specify a vacuum switch, isolation valve, or receiver when leakage or intermittent demand would otherwise keep the blower running continuously.
Selecting the blower technology and sizing the operating point
Choose the blower from required flow at the machine inlet and discharge pressure or vacuum, not from motor horsepower. A unit that achieves its catalogue free-air delivery but loses pressure in piping will leave air knives, vacuum lifters, actuators, or cleaning nozzles underpowered.
That is the basis for choosing oil free air blowers for work in factories in Tumkur.
| Technology | Operating behaviour | Best fit | Main risk |
|---|---|---|---|
| Centrifugal | Dynamic flow; pressure changes alter flow | High, steady flow | Surge at unstable low-flow operation |
| Rotary-lobe | Positive displacement; near-fixed volume per revolution | Conveying, aeration, intermittent duty | Pulsation, noise, higher pressure at blocked discharge |
| Screw | Positive displacement; smoother delivery and broad control | Variable process air and higher blower pressures | Cost, cooling, and control complexity |
| Side-channel | Regenerative airflow at modest pressure or vacuum | Small vacuum lifters, pick-and-place, air knives | Poor choice for high pressure or large flow |
Size the installation from measured demand:
- State normal, minimum, and peak flow, plus the pressure or vacuum at the point of use.
- Add losses through the filter, piping, valves, cooler, and silencer; do not use blower outlet pressure alone.
- Correct the performance curve for Tumkur’s room temperature, elevation, filter differential pressure, and seasonal heat. Dense catalogue air can hide reduced delivered mass flow.
- Compare one large unit with sequenced smaller units when shifts or TRUMPF demand vary. Multiple units improve turndown and standby capacity; one unit costs less and has simpler maintenance but creates a single failure point.
From intake filter to point of use: building a reliable blower system
A reliable blower train carries air from a protected intake to the machine inlet without hiding pressure losses in undersized piping. Design the air blower system installation in Tumkur around peak flow, discharge pressure, room temperature, elevation, and the filter’s expected pressure drop—not motor horsepower.
1. Fit an inlet filter and intake silencer before the blower. Keep the intake away from dust, hot exhaust, and chemical vapours; a blocked filter reduces mass flow and can increase motor loading.
2. Connect the blower to the header with a flexible connector where vibration could reach rigid plant piping. Use a discharge cooler or aftercooler when air temperature could damage hoses, products, or downstream equipment.
3. Install a non-return valve after the blower so the header cannot drive the machine backward. Add a pressure-relief valve sized for the blower’s maximum flow; a positive-displacement blower must never run against a closed discharge.
4. Add a pulsation damper or receiver when rotary-lobe discharge pulses disturb instruments, valves, or air knives. Place isolation valves at the blower, header branches, and each service point so maintenance does not stop the entire factory.
5. Size the distribution header for acceptable pressure loss at peak demand. Slope piping or provide low-point drains, and take machine branches from the upper side of the header so condensate cannot enter actuators or nozzles.
6. Provide a pressure regulator and gauge at each process connection when equipment needs a controlled inlet pressure. Vent the relief, cooler, and exhaust safely, away from operators and the blower intake.
Where Tumkur factories gain value—and where specifications decide the result

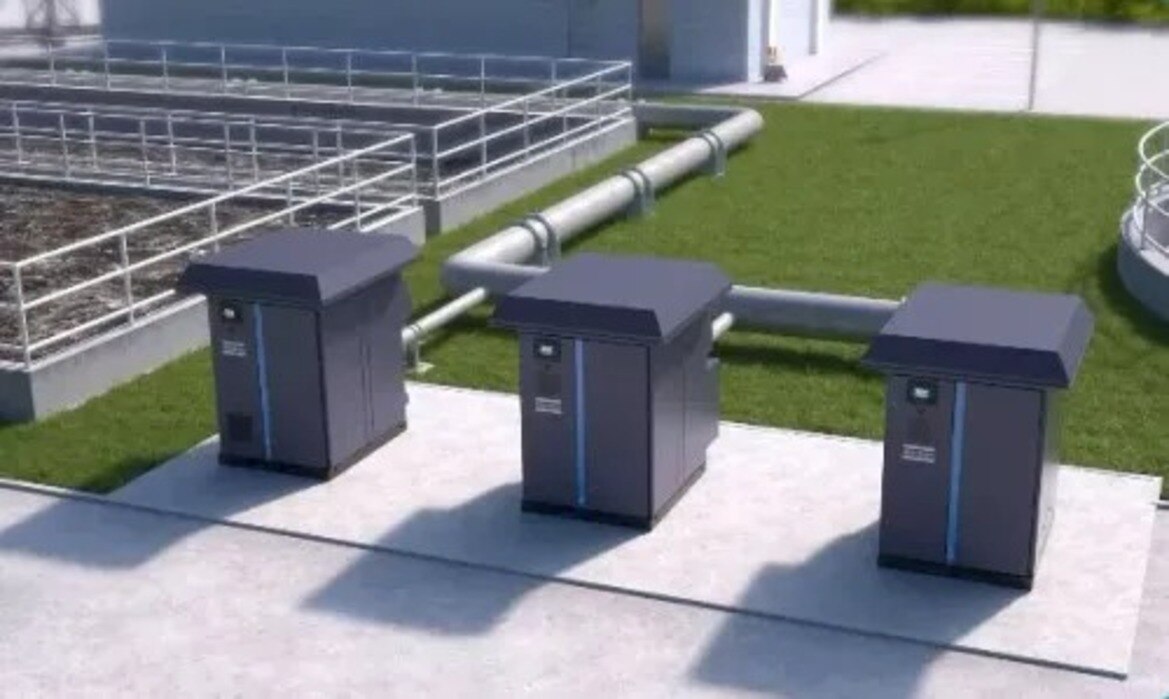

Oil free blower applications suit Tumkur factories that need high-volume, low-pressure air or clean vacuum: conveying, wastewater aeration, vacuum lifting, packaging, pick-and-place, air knives, low-pressure blow-off, and pneumatic clamping.
| Application | Suitable duty | Specification trap |
|---|---|---|
| Pneumatic conveying | Move powders or granules through a line | Check pressure at the conveying inlet, not free-air flow |
| Vacuum lifting | Hold sheets, cartons, or components | Confirm vacuum level after leakage and filter losses |
| Sheet-metal production | Clamping, handling, drying, and low-pressure blow-off | Do not use a blower as laser-cutting assist gas without the machine maker’s pressure, purity, and flow specification |
Specify air quality with ISO 8573-1:2010, covering particles, water, and oil separately. If the process cannot tolerate oil contamination, request ISO 8573-1 oil Class 0 and the manufacturer’s test conditions; “oil-free” alone does not define particle or moisture quality.
A blower is the wrong choice for pneumatic tools or cutting gas when the required pressure exceeds its operating range.
For air blower system installation in Tumkur, size the header for peak flow, add isolation valves, prevent condensate from reaching inlets, and provide relief protection for positive-displacement machines. Use parallel blowers or variable-speed control when demand changes, then trend pressure, flow, temperature, vibration, filter differential pressure, and running hours to schedule service before output falls.
Airprax Pneumatics LLP can help document these operating limits during commissioning and maintenance planning.
Related product
 | Air Compressor Airprax Pneumatics LLP, Bangalore, offers reliable oil free air blowers designed to deliver clean, oil-free airflow for a wide range of industrial... View product → |
Frequently asked questions
How does an oil-free blower move air without oil in the air path?
An inlet filter removes dust, while an impeller, lobe assembly, or other compression element moves air through the chamber without oil contacting the conveyed air.
Should a factory use an oil-free blower or a compressor?
Choose by required pressure, flow, and vacuum. Blowers suit high-flow, lower-pressure duties; compressors suit higher-pressure air requirements.
How do you size an oil-free blower for a factory process?
Define the process flow, pressure or vacuum, operating hours, intake conditions, duty cycle, and pressure losses, then select the blower at its actual operating point.
What does an oil-free blower system installation include?
A reliable system includes inlet filtration, correctly sized piping, discharge protection, cooling, controls, drains where required, vibration management, and access for maintenance.
