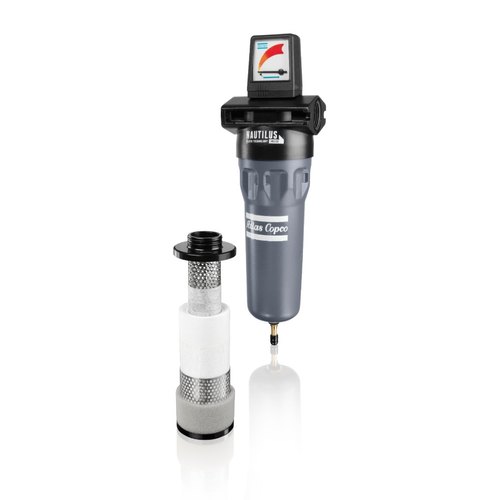

ATLAS COPCO Made Oil Coalescing Filters(UD & UD+) filters efficiently reduce oil aerosol, wet dust and water drops in your compressed air stream to protect your investment, equipment and processes. The UD+ combines two filtration steps (DD+ and PD+) into one, a unique technology to meet the high-quality requirements of diverse applications and provide ultimate energy savings.
BENEFITS :
1. 40% energy savings
2. Save space
3. Pure air
4. Save money
Technical Specification :
Application : Compressed Air
Filter Medium Material : Coalescing
Size : 3/8" to 3"
Flow Rate : 350-550 Scfm
Pressure : 13 bar max
Capacity : All ranges
Max Temperature : 0-100 Degrees F
Max Pressure : 0-100 psi, 100-150 psi
Filtration Grade :ISO 8573-22007,ISO 12500-12007
Maximum Operating Pressure :13 bar
Brand : Atlas Copco
Efficiency : 99.99 %
Max Operating Temperature : 65 Deg C
Max Working Pressure : 7 Kg/cm2
Pipe Size : 1 and 1/2 inch
